ZRA-1449T Steel Liquid And Suction Core Shell
Update: 14-09-29 17:51 View:
Introduction
Product Introduction
ZRA take-apart filter drier with exchangeable solid core uses the flange connection to seal. That is very convenient to adjust and maintain the equipment. This steel liquid and suction core shell is especially suitable for use in conditions where compressor damage has occurred or heavy ingress of water in the system. It has super cleaning and absorption abilities (to be equipped the available cores). It can be used in the liquid line and suction line of the refrigeration system for cold storage and air adjusting equipment.

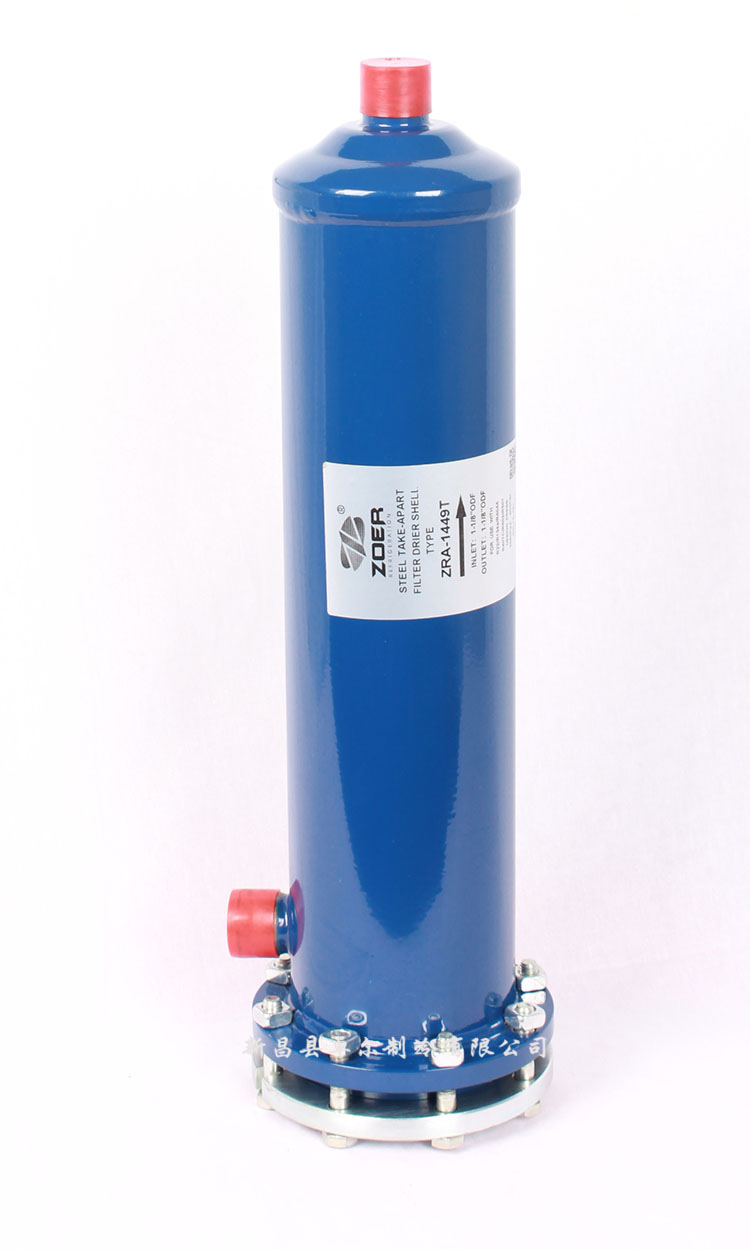

Product Display
Product Fedture
●可與所有品牌的48系列模制干燥濾芯和吸氣濾芯及百褶式濾芯匹配
Can be matched well with all brands of 48 series of LineFilter Blocks and Suction Line filter cores
●簡化的內部零件便于產品的安裝，且所有零件均為有鍍層的鋼制件
Simple internal parts making easy installation, and all partsare steel Galvanized
Product Attribute
| Specifications | |||||||
|
●Can choose ZRD-48 or ZRH-48 for liquid line ●Can choose ZRF-48 or ZRX-48 for suction line ●All the types are shipped without filter or suction line cores |
|||||||
| Naming methods | ZRA-1449T | ||||||
| Nomenclature：For Example ZRA-1449T | |||||||
| ZRA | 144 | 9 | T | ||||
|
ZRA Steel Take -Apart Series |
Unit Size (in cu. in. ) |
Connection Size （in1-1/8" ） |
System Service? T=Liquid Line Services??? SV=Suction Line Series |
||||
| Dimensional Data | Dimensional Data | ||||||
 |
|||||||
| Inlet&Outlet Size(in) |
Number of 48 in³ cores |
Desiccant Volume（cu,in.） |
Dimensions（mm） | ||||
| A | B | C | D | E | |||
| 1-1/8 | 3 | 144 | 521 | 438 | 84 | 114 | 151 |
